Frame Positioning Conveyors

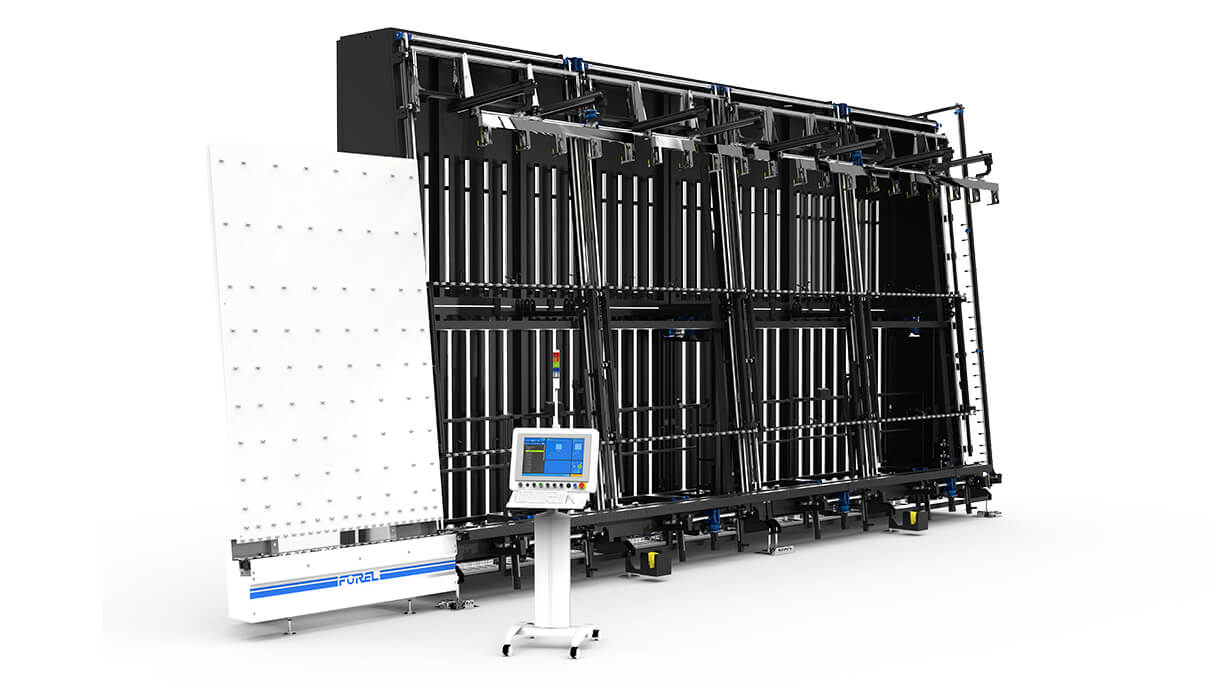

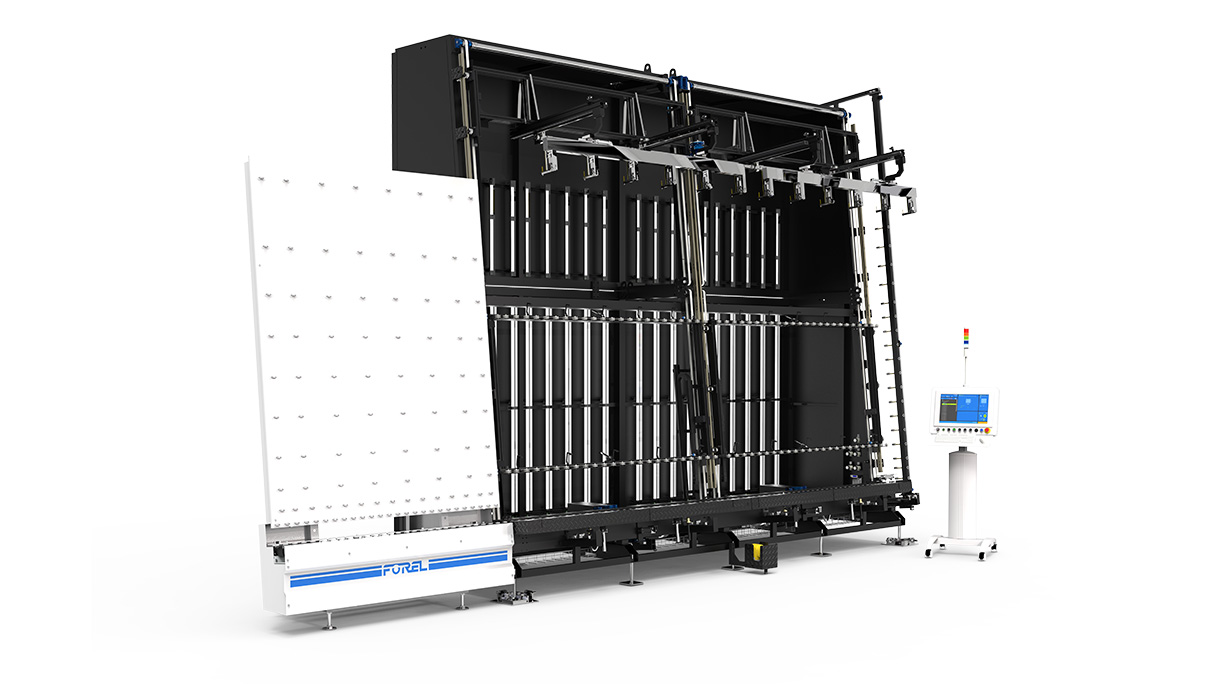

The inspection and frame positioning station Art. FP NL has been developed processing also extra-Jumbo size units, with lengths exceeding 6000 mm. This solution is a full-optional model, featuring automatic reference bars, adjustable brightness rear LED lights, automatic upper references, access door for reaching the back of the line. Art. FP NL is also equipped wth a special internal lift platform, for inspecting the upper part of the glass sheet.

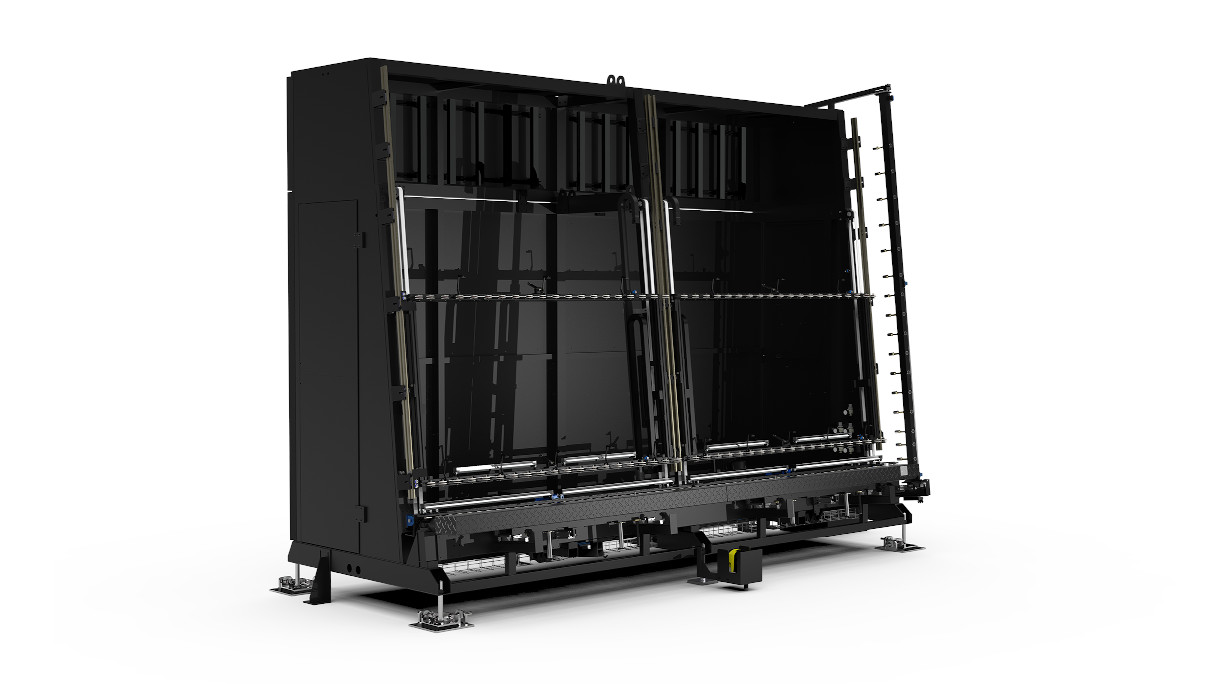

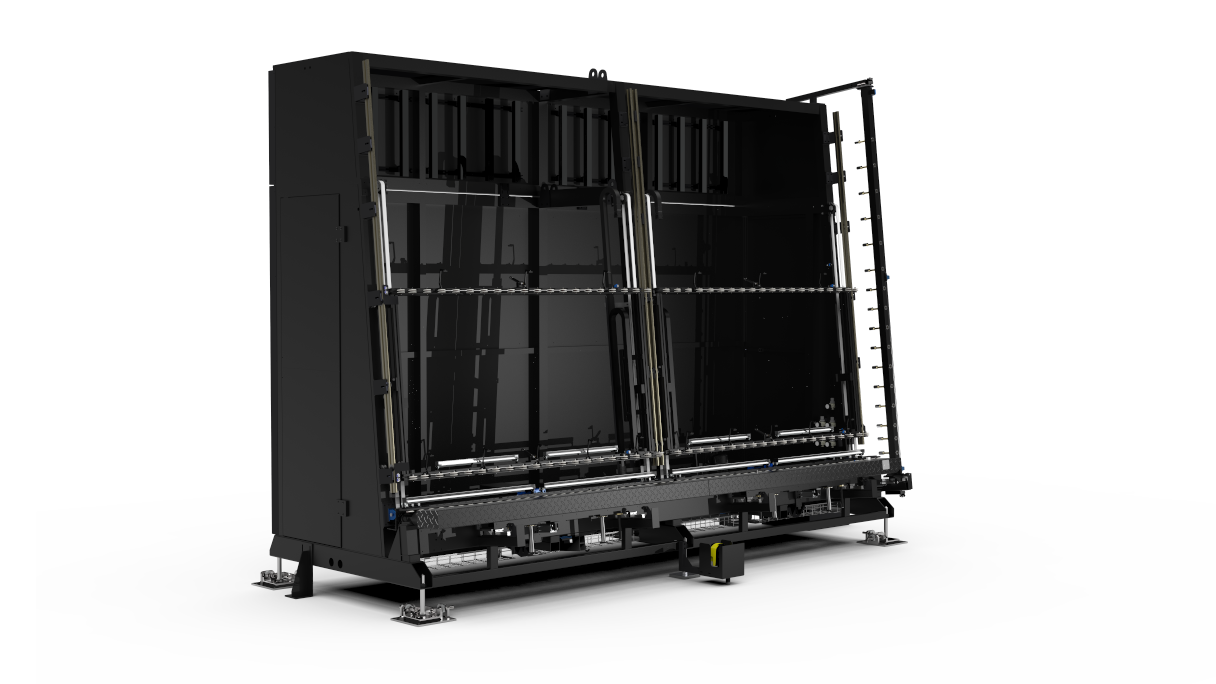

The “Residential” range offers different versions of the frame positioning stations Art. FP ES:

• The first version is a “basic” frame positioning station, equipped with neon light and available in two models with different maximum workable formats, up to 3,600 x 2,500 mm. The station in equipped with horizontal and lower manual references for easy frame positioning.
• The second version is available in four different models with different maximum workable formats (up to 6000 x 3300 mm), with horizontal and lower manual references. During processing, sensors acquire the pane format and the mobile bars, equipped with a LED light system, are positioned automatically. The inspection room, with a special black structure, allows the check of the rear side of the glass.
