ART. sA1300

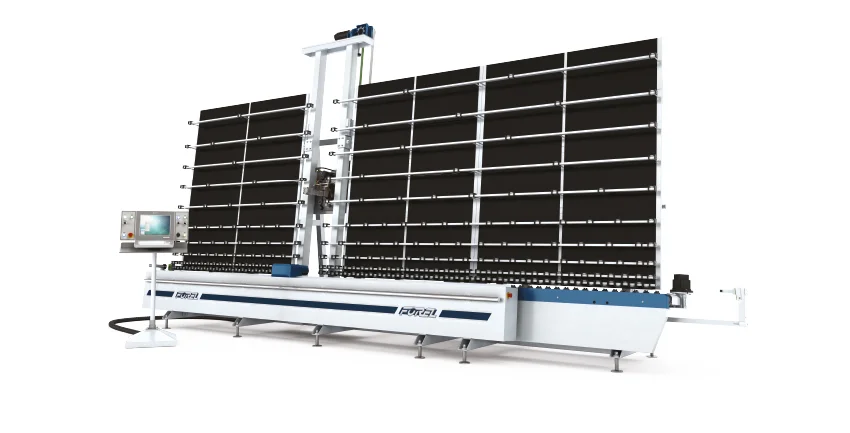

AUTOMATIC VERTICAL SEALING ROBOT

★ OPTIMISED FOR SPECIAL GLASS   ★ DEVELOPED WITH LEADING GLASSWORKS   ★ HIGH QUALITY STANDARDS

DESCRIPTION

The SA1300 automat ic sealing ROBOT is highly automat ed to maximize productivity whilst reducing waste and downtime. The plat form works with both mono and dual component sealants such as polyurethane, polysulfide and silicon. The machine is a solid structure featuring Forel’s innovative construction reflecting the philosophy and culture for quality build. This feature guarantees extreme accuracy, performance and capacity especially considering weight per linear metre. The machine automatically detects the double glazed units overall and internal cavity thickness ensuring the units correct positioning relative to the sealing head. The platform has three independently driven conveyors for maximum sealed unit productivity and they are automatically synchronized with the movement of the two support bars situated on the out-feed conveyor. The extrusion head is equipped with a depth measuring device that constantly reads the depth of the cavity ensuring that the volume of sealant is managed precisely. The accurate control of the sealant is further enhanced with the use of an automatic corner finishing spatula that perfectly dresses each corner. Two volumetric syringe type dosing units (base product and catalyst) with thermo regulated heating elements ensure that the material is correctly extruded in a constant and homogenous way. Mix ratios for dual component sealants can easily be altered according to the needs via the on-board control unit. The machine is capable of automatically sealing units with more than one cavity. The sealant is applied to squares and rectangles automatically via the on board self-learning system, glass that has other than 4 x 90° corners requires dimensional information that can be input either manually, or automatically from file or from an inline shape scanner (option). The machine is equipped with a self-diagnostic system that identifies faults with codes, descriptions and images with an additional system that allows for remote connection and assistance.
